UltraMax 12V 20Ah LiFePO4 Battery Charger (EU)
UltraMax 12V 20Ah LiFePO4 Battery Charger (EU)
1 review
Precio habitual
£69.99 GBP
Precio habitual
Precio de oferta
£69.99 GBP
Impuestos incluidos.
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro

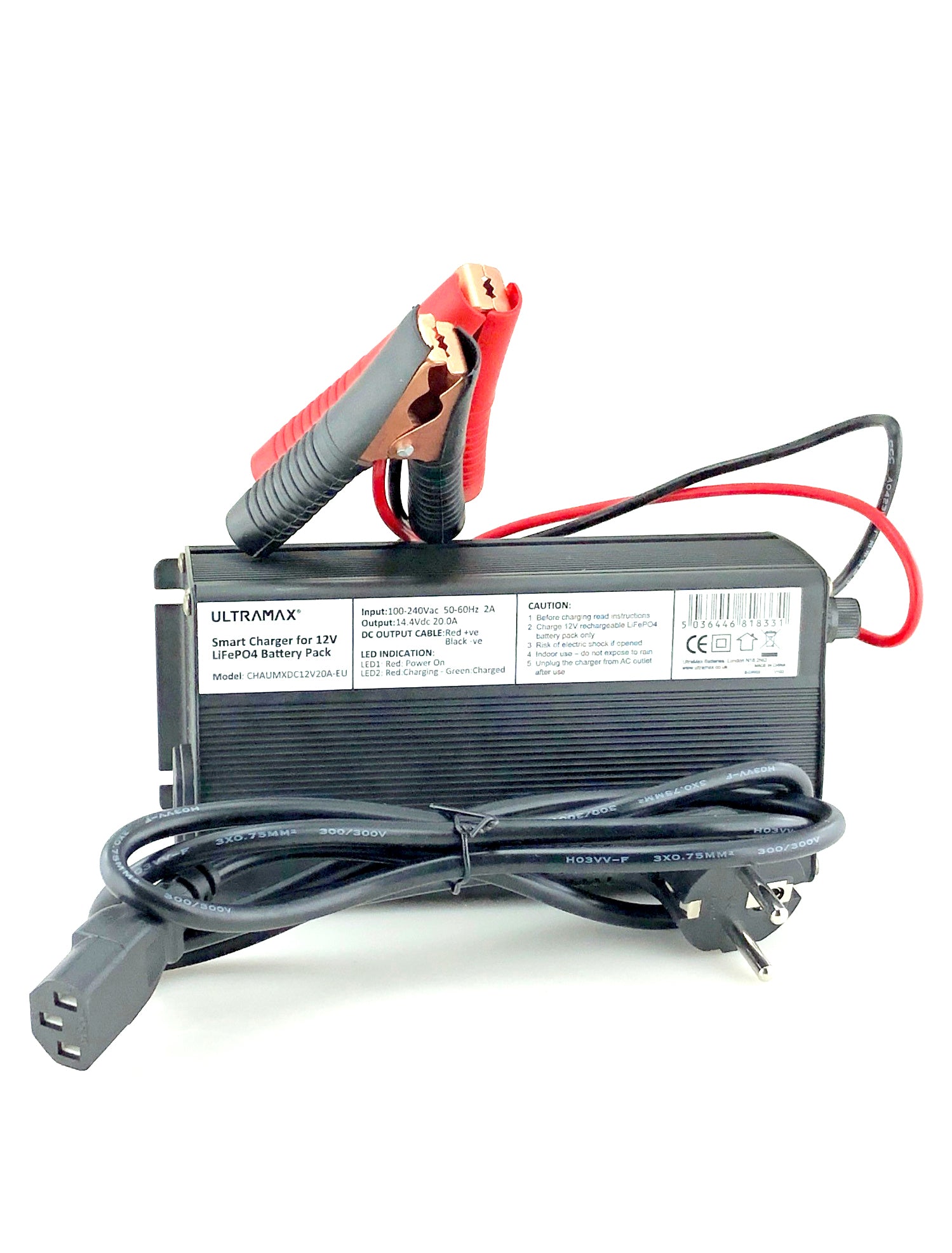

The UltraMax 12V 20Ah LiFePO4 Battery Charger is a high-performance, reliable charging solution designed specifically for 12V (14.6V nominal) Lithium Iron Phosphate (LiFePO4) batteries and battery systems. CE listed IP65 Rated. Equipped with CPU control and pulse width modulation (PWM) technology, this charger ensures precise control over charging current and output voltage.
- Plug type: EU (3-pin XLR connector)
- Suitable for: 12V LiFePO4 batteries 40Ah - 300Ah capacity only
- Charging time 0 to 100%: 12V 100Ah battery = approx 5 hours
Charger Features:
| LED Indicators | Red: Charging | Green: Fully Charged |
| Connector Type | Crocodile Terminal Connector |
| Input | 200-240V AC 50/60Hz |
| Output | 14.6V DC 10A |
| Charging Current | 20.0A ± 2.0 |
| Max. Output Power | 292W |
| Charging profile | CC/CV two-stage (automatic) |
| Efficiency (at max load) | >90% |
| Dimensions mm (L x W x H) | 160 x 105 x 60 |
| Weight | 1.2g |
| Certifications | CE listed IP65 Rated |
Important Note: For best results, always match the charger to your battery's exact specifications and connector type. Professional installation recommended if unsure.
